Solar Thermal Collector

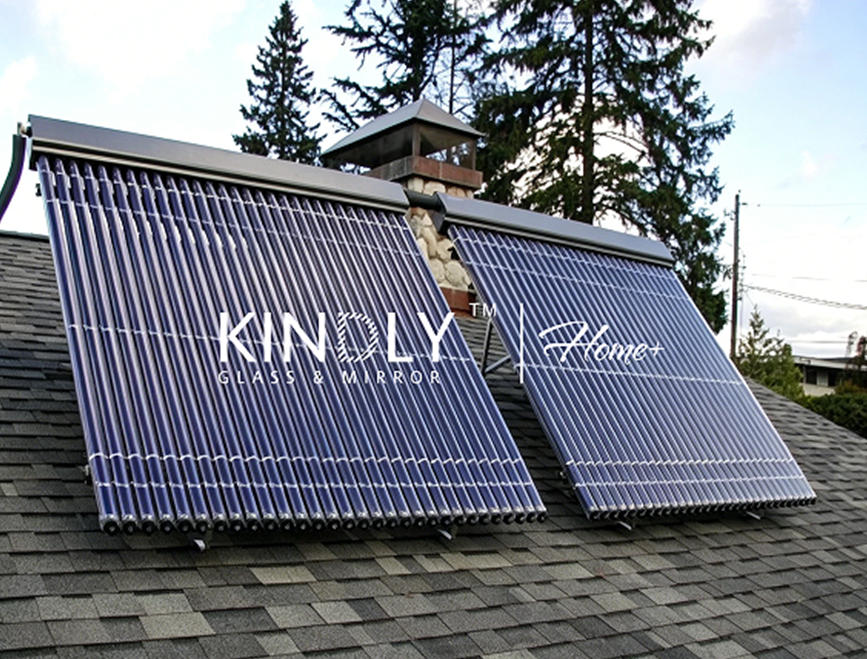

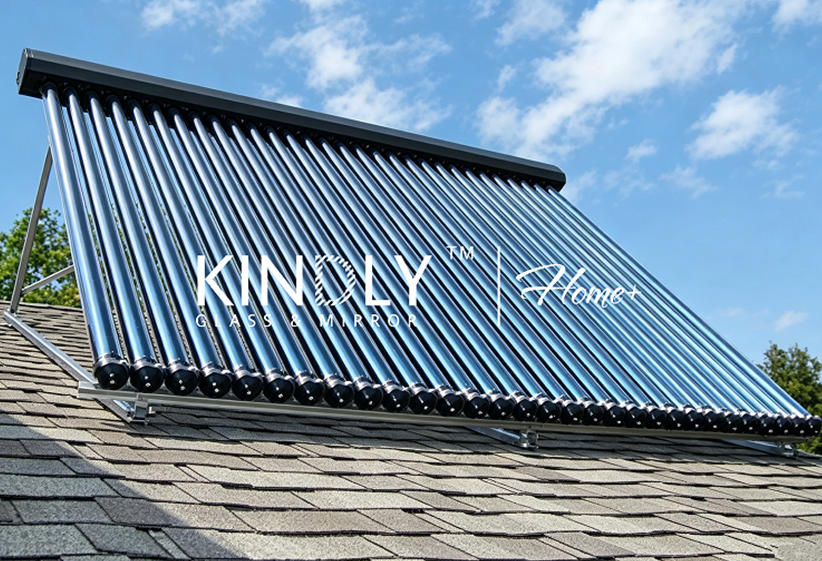

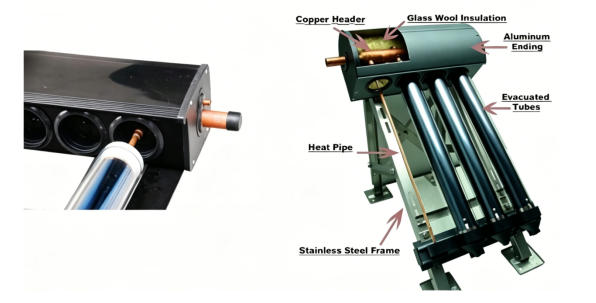

This heat pipe solar thermal collector is a pressurized split solar component, with full copper manifold inside and aluminum outer shell. The evacuated tube with high selective coating achieves 94%-96% solar absorption rate, paired with glass wool insulation to reduce heat loss. No domestic water inside vacuum tubes avoids scaling and corrosion, it can be installed on roof, wall to match architectural style. Certified by Solar Keymark & CE EN12975, it works normally under -35°C low temperature, widely used for villa domestic hot water, floor heating system.

GET A QUOTE

Description

Features:

· Pressurized operation and no water flow in the vacuum tube, so water scale and tube exposition are avoided.

· It can be integrated with the architecture perfectly and be connected with the existing pipes.

· Interferential film coated vacuum tube with absorptance among 94% to 96%, and vacuum degree of 5×10-4 pa; its service life will be not less than 15 years.

· Heat pipe collectors have passed the Solar Keymark certificate and CE certificate, met EN12975 standard.

Specification:

· Manifold (interior): Red copper

· Manifold (exterior): Aluminum alloy

· Glass tube dimensions: 58mm x 1.8m / 47mm x 1.5m

· Tube no:10/12/15/18/20/22/24/25/28/30tube

· Heat preservation: 72 hrs

· Hail resistance: 25mm

· Max pressure: 6 bar

· Coating of vacuum tube: ss-c/cu

· Heat pipe: Anti-freezing > -35°C

How does a solar collector work？
