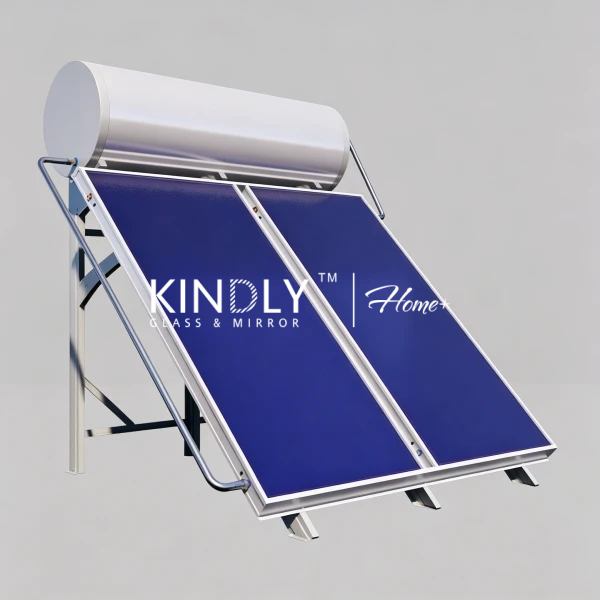

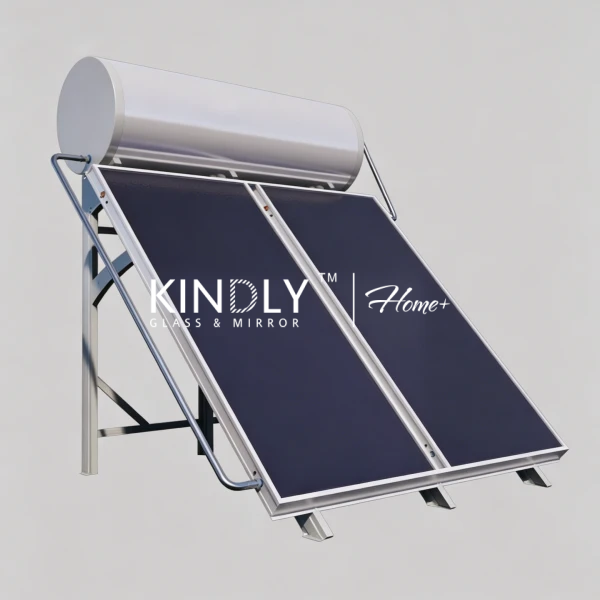

Pressurized Integrated Flat Panel Solar Water Heater

This pressurized integrated flat Panel solar water heater supports customizable absorber coating, tank inner material, bracket color and circulation mode. Max working pressure reaches 7 bar, compatible with municipal tap water supply. Adopt high absorption flat solar collector with 90% transmittance low iron tempered glass, polyurethane foam tank insulation and optional electric backup heating for all-year hot water supply. Available in 150L/200L/250L/300L capacity for family, villa and residential use.

GET A QUOTE

Description

Features:

· Heat absorption performance: 95% absorption rate & 5% emissivity delivers superior heat exchange efficiency, suitable for low-temperature and frigid zones.

· Safe pressure resistance: The unit supports a maximum working pressure of 7 bar, complying with global domestic tap water standards.

· Cover glass: Low-iron ultra-white tempered glass with 90% light transmittance, hail-resistant and anti-aging.

· Full insulation setup: Polyester cotton insulation for collectors + integral polyurethane foam insulation for water tanks to retain heat around the clock.

· Full capacity range: 150L/200L for small households, 250L/300L for large families & villas, covering all residential scenarios.

· Electric backup heating: Automatic auxiliary electric heating for cloudy/rainy days to guarantee stable hot water supply all year round.

Specification:

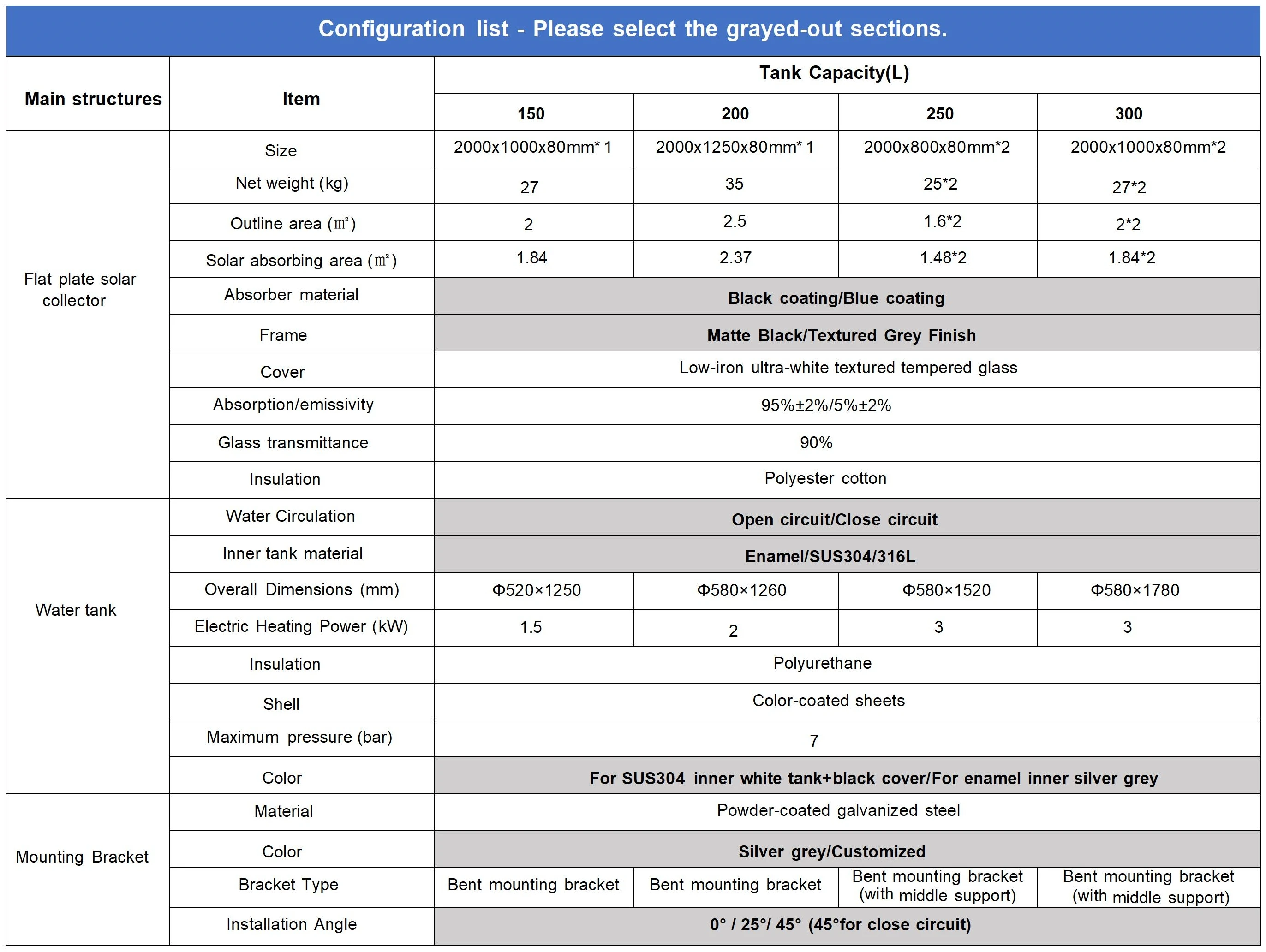

Configuration list.webp
